ELECTRICAL CIRCUIT ANALYSIS

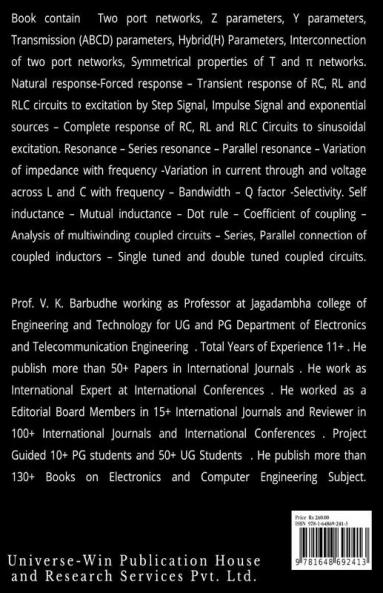

Book contain  Two port networks Z parameters Y parameters Transmission (ABCD) parameters Hybrid(H) Parameters Interconnection of two port networks Symmetrical properties of T and π networks. Natural response-Forced response – Transient response of RC RL and RLC circuits to excitation by Step Signal Impulse Signal and exponential sources – Complete response of RC RL and RLC Circuits to sinusoidal excitation. Resonance – Series resonance – Parallel resonance – Variation of impedance with frequency -Variation in current through and voltage across L and C with frequency – Bandwidth – Q factor -Selectivity. Self inductance – Mutual inductance – Dot rule – Coefficient of coupling – Analysis of multiwinding coupled circuits – Series Parallel connection of coupled inductors – Single tuned and double tuned coupled circuits.
